Oilpath has partnered with Walvoil hydraulic valves, bringing you their exceptional products for your hydraulic applications.
Our inventory now includes a variety of SD5, SD18, DHZ5/4A, and DFE052 series valves, designed for durability and efficiency in demanding applications.

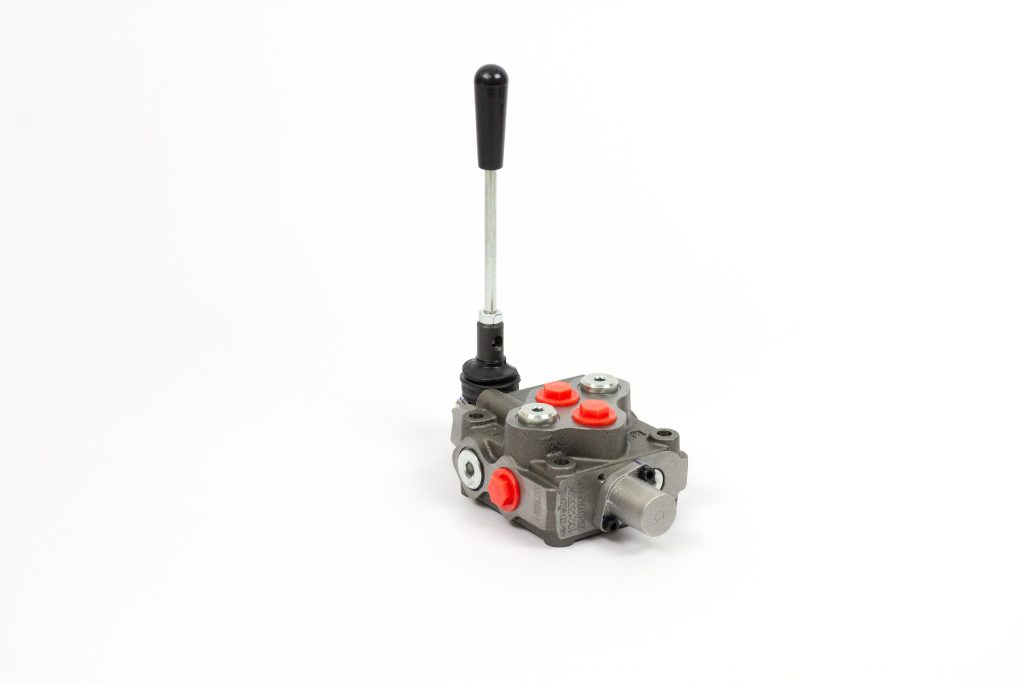

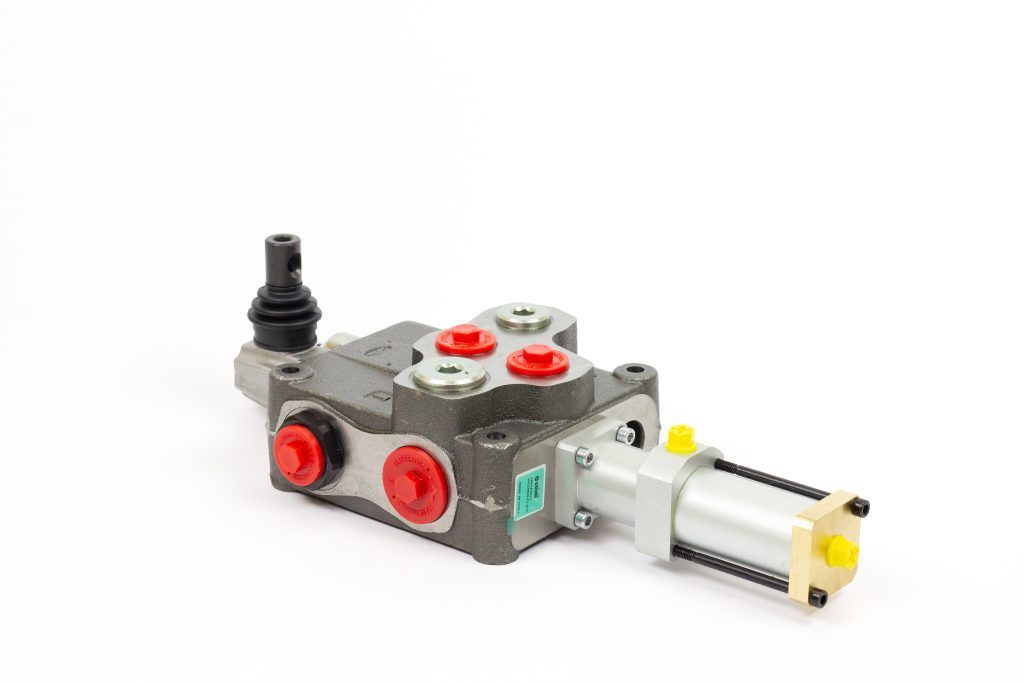

SD5 – Heavy-Duty Monoblock Valve
• 3/8” BSPP work ports
• 45lt/min nominal flow rate
• 315 Bar rated
• Simple, compact, heavy-duty monoblock construction
• 1 to 7 sections available
• Open and closed centre options
• Standard with a main pressure relief valve and load checks (other options available)
• Parallel circuit stocked, series circuits available
• Interchangeable spools
• Manual, pneumatic, electro-pneumatic, hydraulic, and electro-hydraulic control options
• Remote options available
• Optional carry-over port
Available SD5 Part Numbers:
| Part No. | Description |
|---|---|
| W102130396 | SD5/1-P(JNG3-120)/18L/AET |
| W102200409 | SD5/2-P(JNG3-120)/18L/18L/AET |
| W102300381 | SD5/3-P(JNG3-120)/18L/18L/18L/AET |
| W102401091 | SD5/4-P(JNG3-120)/18L/18L/18L/18L/AET |
| W102500349 | SD5/5-P(JNG3-120)/18L/18L/18L/18L/18L/AE |
| W102600000 | SD5/6-P(JNG3-120)/18L/18L/18L/18L/18L/18 |
| W102700149 | SD5/7-P(JNG3-120)/18L/18L/18L/18L/18L/18 |

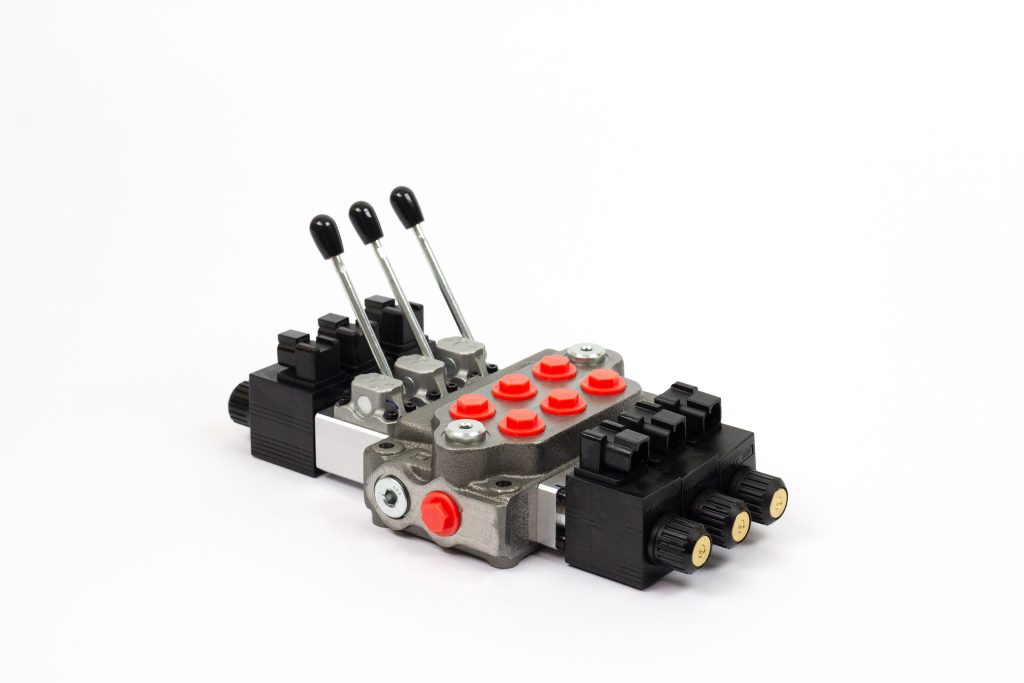

Solenoid Control SD5 – Electrically Controlled Valve
• Same specifications as SD5
• 1 to 6 sections available
• Solenoid-operated for precise control
Available Solenoid SD5 Part Numbers:
| Part No. | Description |
|---|---|
| W102139956 | SD5/1-P(JNG3-120)/18ES34LHC/AET-12VDC |
| W102201531 | SD5/2-P(JNG3-120)/18ES34LHC/18ES34LHC/AE |
| W102301231 | SD5/3-P(JNG3-120)/18ES34LHC/18ES34LHC/18 |
| W102401092 | SD5/4-P(JNG3-120)/18ES34LHC/18ES34LHC/18 |
| W102500673 | SD5/5-P(JNG3-120)/18ES34LHC/18ES34LHC/18 |
| W102600462 | SD5/6-P(JNG3-120)/18ES34LHC/18ES34LHC/18 |
SD18 – High-Flow Monoblock Valve
• 3/4” BSPP work ports
• 160 l/min nominal flow rate
• 250 Bar rated
• Simple, compact, heavy-duty monoblock construction
• 1 to 6 sections available
• Open and closed centre options
• Standard with a main pressure relief valve and load checks (other options available)
• Parallel circuit stocked, series circuits available
• Interchangeable spools
• Manual, pneumatic, electro-pneumatic, hydraulic, and electro-hydraulic control options
• Remote options available
• Optional carry-over port
Available SD18 Part Numbers:
| Part No. | Description |
|---|---|
| W106161011 | SD18/1-P(KG3-120)/18PL/A WALVOIL DCV D |
| W106261007 | SD18/2-P(KG3-120)/18PL/18PL/AE WALVOIL |

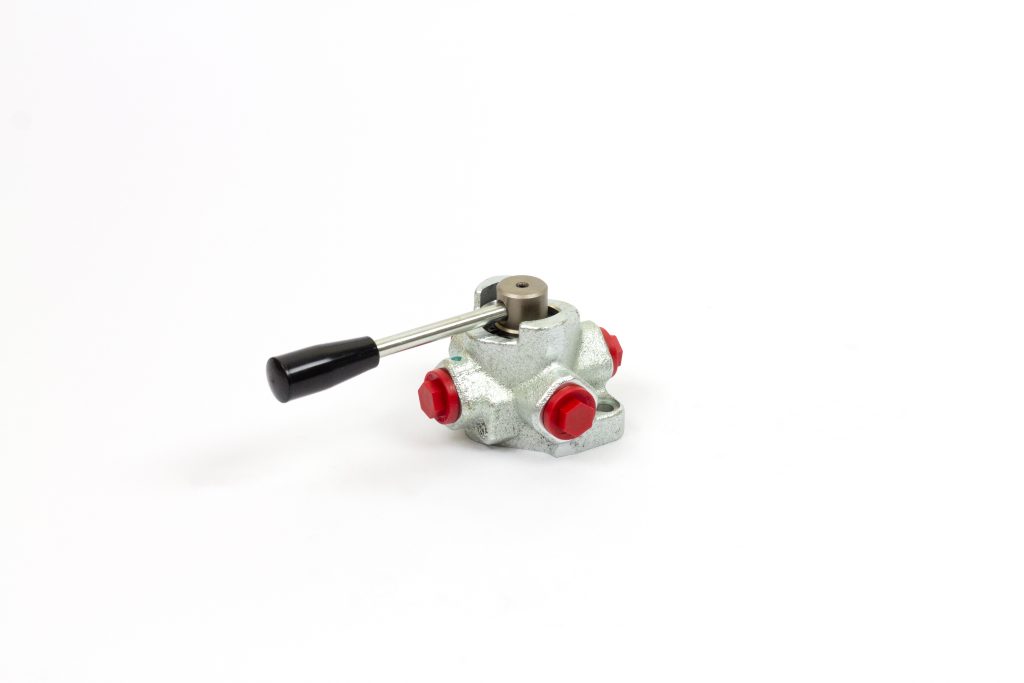

DHZ5/4A – Selector Valve
• 3/8” BSPP work ports
• 60lt/min nominal flow
• 315 Bar rated
• Rotary 4-way diverter valve
• Galvanized body for durability
Available DHZ5/4A Part Number:
| Part No. | Description |
|---|---|
| W132Z41110 | DHZ5/4A SELECTOR VALVE 3/8″ BSPP 315 BAR |

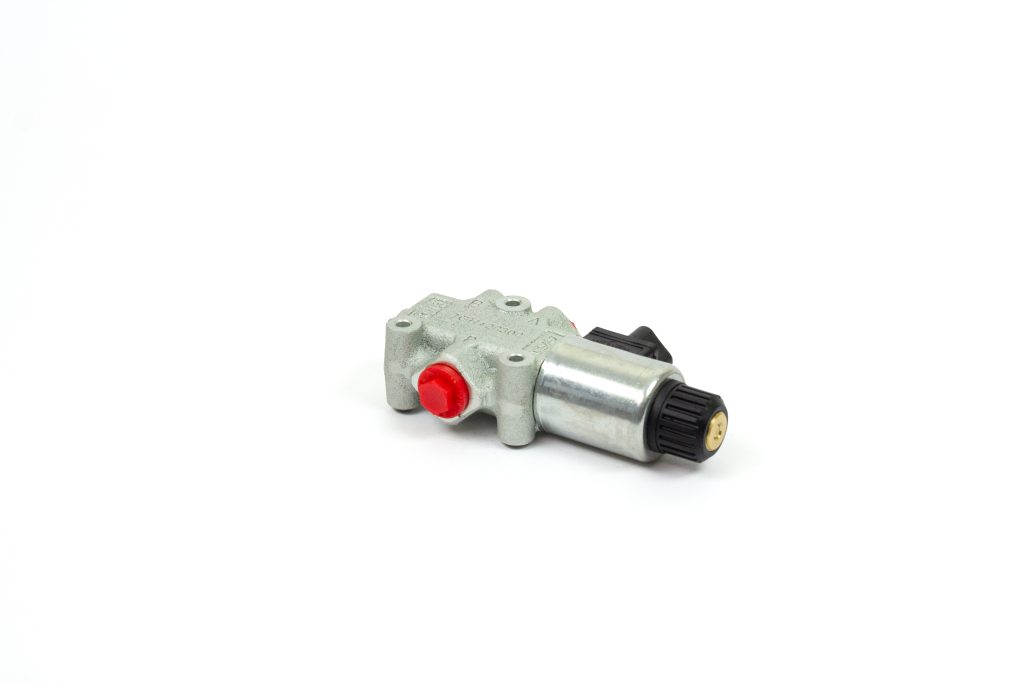

DFE052 – Solenoid Diverter Valve
• 3/8” BSPP work ports
• 60lt/min nominal flow
• 315 Bar rated
• Solenoid control diverter valve
• 12VDC and 24VDC options available
• 2/3-way solenoid diverter valve
Available DFE052 Part Number:
| Part No. | Description |
|---|---|
| W12Z240040 | DFE052/3A18ES-W201-24VDC-CRZ |
If you need further details or want to place an order, our team is here to assist you.
