OILPATH DIRECTIONAL
CONTROL VALVES

Relief Valve Packages

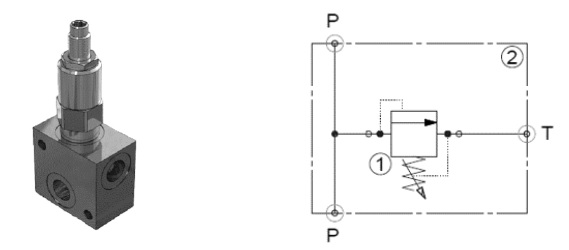

OP110 Relief Valve

Oilpath OP110 through ported in-line relief valves are designed and manufactured in
Australia utilising superior materials and HydraForce relief valve cartridges.

  • Maximum working pressure: 50-210 bar (750-3000 psi)
  • Sizes: 28-160 lpm
  • Port Size: 3/8” or 1/2” BSPP
  • Body: High tensile aluminium
  • Components: HydraForce Relief Valve Cartridges

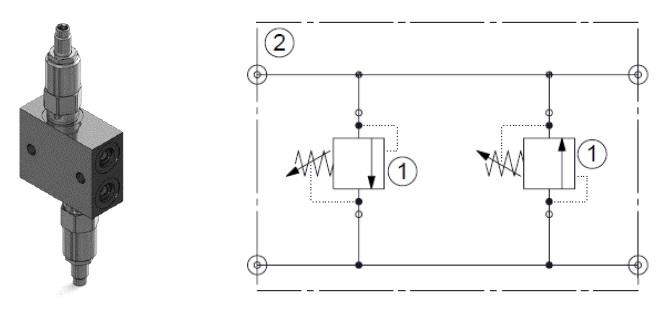

OP115 Relief Valve

Using top-quality materials and precision HydraForce relief valve cartridges, the OP115 is a robust solution for hydraulic system protection that stands up to the toughest industrial demands.

  • Maximum working pressure: 50-210 bar (750-3000 psi)
  • Sizes: 28-113 lpm
  • Port Size: 3/8” or 1/2” BSPP
  • Body: High tensile aluminium
  • Components: HydraForce Relief Valve Cartridges

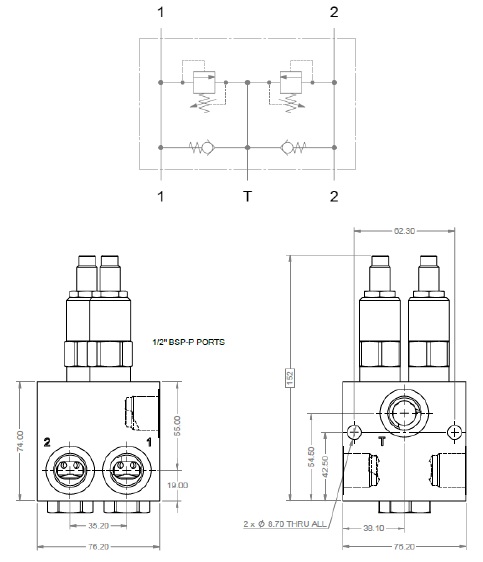

OP129 100 lpm Cross line relief with anti-cavitation checks

Our Oilpath 100 lpm Cross Line Relief valve is engineered to deliver exceptional performance, featuring innovative anti-cavitation checks and is powered by reliable HydraForce pilot-operated relief valves. This advanced design ensures smooth hydraulic system operation and protects against potential pressure-related issues.

  • Maximum working pressure: Aluminium 210 bar (3000 psi)
  • Port sizes: 1/2” BSPP
  • Cartridges: HydraForce
  • Body: High tensile aluminium
