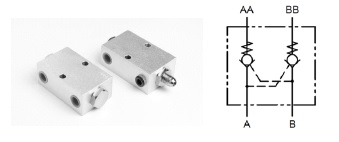

Oilpath OP101 Lock valves are designed and manufactured in Australia, utilising quality materials and modern machining techniques.
The pilot piston is made from hardened steel and precision-fitted to the aluminium body. It activates chrome steel check valve balls that provide minimal leakage.
• Maximum working pressure: 210 bar (3000 psi)
• Sizes: 55 lpm
• Type: OP101-I for in-line applications
• Type: OP101-C direct cylinder mount applications
• Port Size: 1/2” BSPT or 3/4” UNF
• Body: High tensile aluminium
• Components: Hardened steel balls and pilot piston
• Seals: Buna – N.
