CETOP and Subplates

CETOP Manifolds

 CETOP 3 Bar Manifolds

• Mounting interface Cetop 3 (OP112)
• Parallel and Series circuits
• Manufactured in Australia from high grade aluminium alloy
• Maximum operating pressure 245 bar
• Pressure and Tank lines ported both ends
• Provision for mounting an optional HydraForce relief or unloader module
• Up to 6 stations available as standard
• Available with integral 10‐2 valve cavity for relief or unloader

 CETOP 5 Bar Manifolds

• Mounting interface Cetop 5 (OP114)
• Parallel circuits
• Manufactured in Australia from high grade aluminium alloy
• Maximum operating pressure 245 bar
• Pressure and Tank lines ported both ends
• Provision for mounting an optional HydraForce relief or unloader module
• Up to 6 stations available as standard
• Available with integral 10‐2 valve cavity for relief or unloader

CETOP and Subplates

OP111 CETOP 3 & 5 Subplates datasheet

• Mounting interface Cetop 3
• Manufactured in Australia from high grade aluminium alloy and Dura‐bar
• Maximum operating pressure 245 bar for Alloy
• Maximum operating pressure 345 bar for Steel
• Side outlet, Bottom Outlet available

Valco Valves

Valco VC3 and VC5 Cetop valves

VALVCO is an Oilpath owned company established to handle product developed in partnership with other like-minded companies.

The Valvco Cetop 3 & 5 Valves are an economical product with high quality cast iron bodies and hardened spool components.

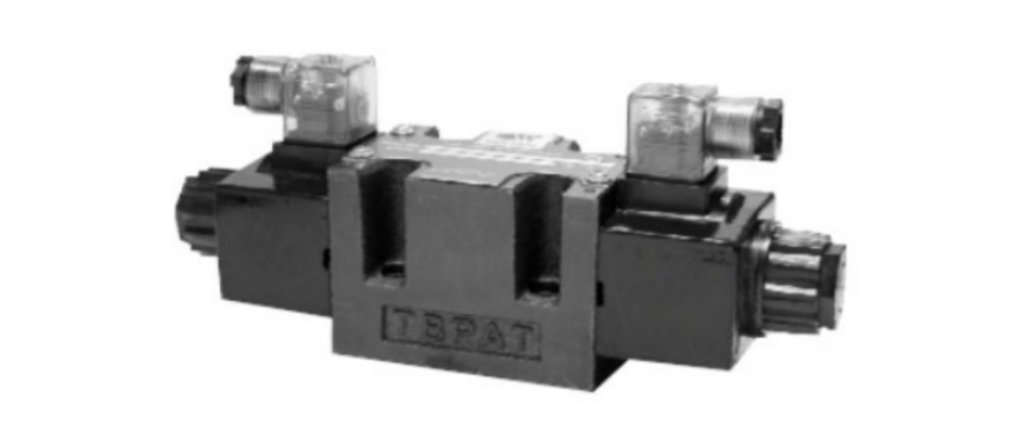

Valvco VC3 CETOP 3 Valve

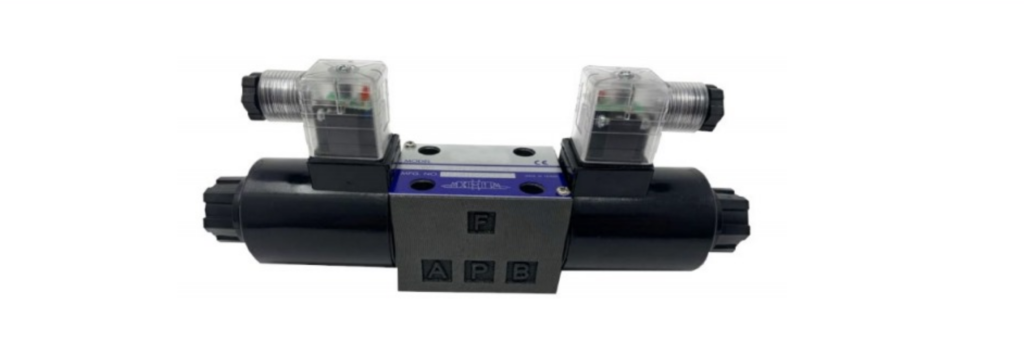

Valvco VC5 CETOP 5 Valve
